- Unique angled cabinet design blends in with exterior and interior decors
- Flexible installation options with supplied mounting brackets
- Wide range of applications for home theaters, small commercial spaces and public buildings
- High-grade Weatherproof cabinets with special processing for drip, water and UV resistance
Product Description
Yamaha advanced speaker technology makes it possible to combine high sound quality with long-term durability
From the Manufacturer

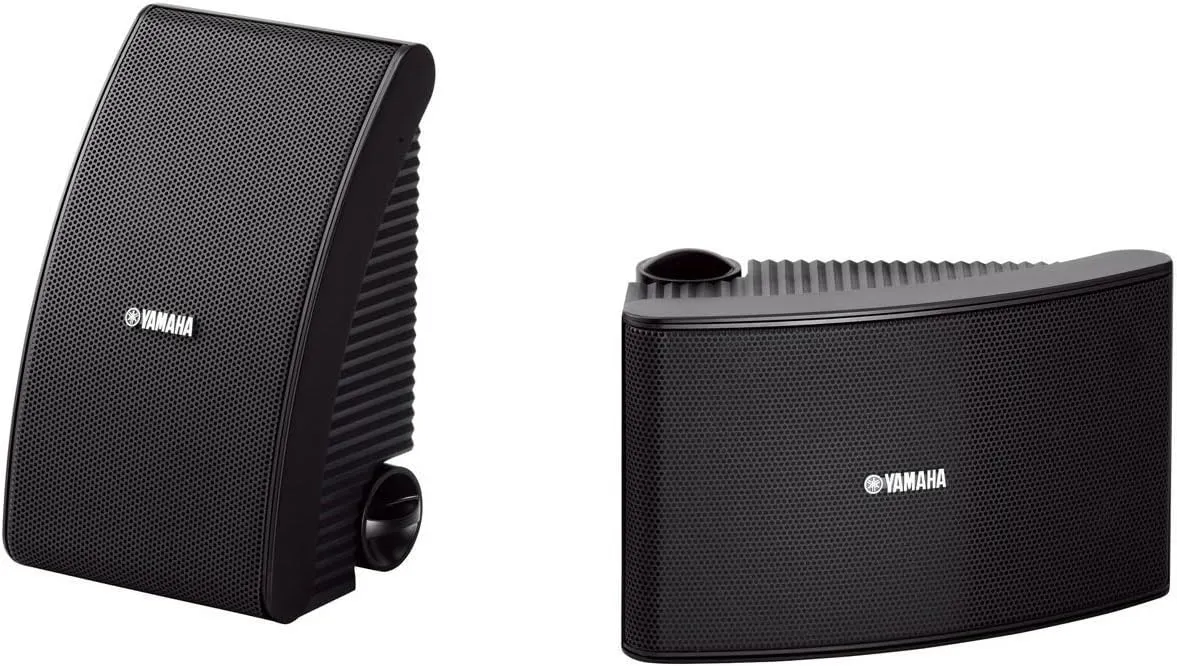

An Outdoor Speaker System that Combines Mounting Flexibility, Audio Quality and Durability
Various installation possibilities
Beautiful design fits everywhere
Excellent Audio Performance
Yamaha drew on its long experience as a manufacturer of top quality hi-fi speaker systems to developed the NS-AW392 all-weather model. We were able to make it extremely durable while still maintaining audio performance that's up to Yamaha standards. The woofer uses a highly responsive cone and fluid-cooled soft dome tweeter, both specifically processed for water resistance. The internal structure has been carefully designed for optimal time alignment between two units, providing proper sound imaging. A waveguide and front baffle ensure good sound dispersion characteristics. Tonal clarity in all frequency ranges are excellent, with very low distortion.
Versatile Applications
Designed primarily for use as an outdoor speaker, the NS-AW392 can add to the fun of backyard parties, supply background music on patios and decks or be mounted in or near the garage. They can be used indoors or outdoors at public facilities, as well as inside shops. And of course, they can also serve as surround speakers in home theater installations.
Professional Design
Versatile installation
Goes with any decor
Various Installation Possibilities
The bracket that comes with each speaker can be adjusted in multiple ways, providing a wide variety of installation possibilities. On the wall, on the ceiling, on the floor, with either end facing up, or even horizontally, with a 90 degree adjustment range. Virtually any way you want them is a possibility.
Unique Cosmetic Design
The NS-AW392 has a unique, appealing design that sets it apart from other outdoor speakers, most of which are box-shaped. Even though it stands out on its own, once you install this speaker you'll find that it matches nicely with any exterior or interior decor.
All-Weather Construction
With a plastic cabinet and specially processed woofer and tweeter, these speakers will perform reliably when mounted outdoors. The NS-AW392 is water resistant, and is not affected by sunlight (UV rays) or high or low temperatures.
Technical Specifications
- Type: 2-way acoustic suspension
- Woofer: 5-1/4" water proof cone
- Tweeter: 3/4" fluid-cooled, coated soft dome
- Frequency Response: 60Hz - 25kHz
- Nominal Input Power: 40W
- Maximum Input Power: 120W
- Sensitivity: 86dB
- Crossover Frequencies: 6kHz
- Grille: Aluminum coated metal
- Speaker Terminals: Waterproof, screw type
- Impedance: 6 ohms
- Dimensions (WxHxD): 6-3/4" x 10-3/4" x 5-3/8"
- Weight (ea): 4 lbs
